Simple Model of Spiking Neurons
IEEE Transactions on Neural Networks (2003) 14:1569- 1572
Eugene M. Izhikevich
The Neurosciences Institute,
10640 John Jay Hopkins Drive,
San Diego, CA, 92121.
Abstract. We present a model
that reproduces spiking and bursting behavior of known types of cortical
neurons. The model combines the biologically plausibility of Hodgkin-Huxley-type
dynamics and the computational efficiency of integrate-and-fire neurons. Using
this model, one can simulate tens of thousands of spiking cortical neurons in
real time (1 ms resolution) using a desktop PC.
Full text in PDF file,
The paper contains MATLAB program that
simulates 1000 randomely connected spiking neurons in real time.
You can
explore the neuro-computational properties of this model using interactive
MATLAB tutorial
program

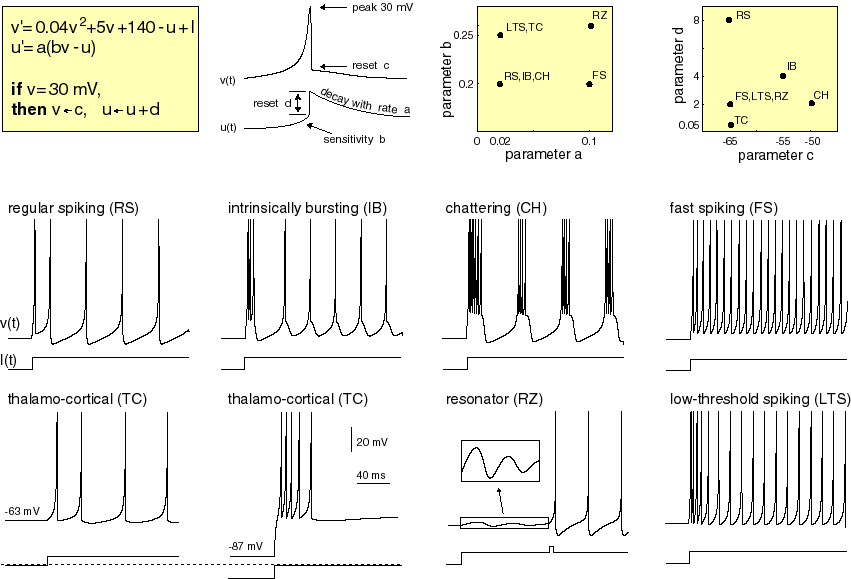

The following figure summarizes the model, and it is
available in pdf,
gif, bmp, and eps formats.
Hereby you are granted the permission to freely use this figure in your
publications provided that (1) You add the line Electronic version of the
figure and reproduction permissions are freely available at www.izhikevich.com
to your paper and (2) you send me a copy of your paper when it is published.
